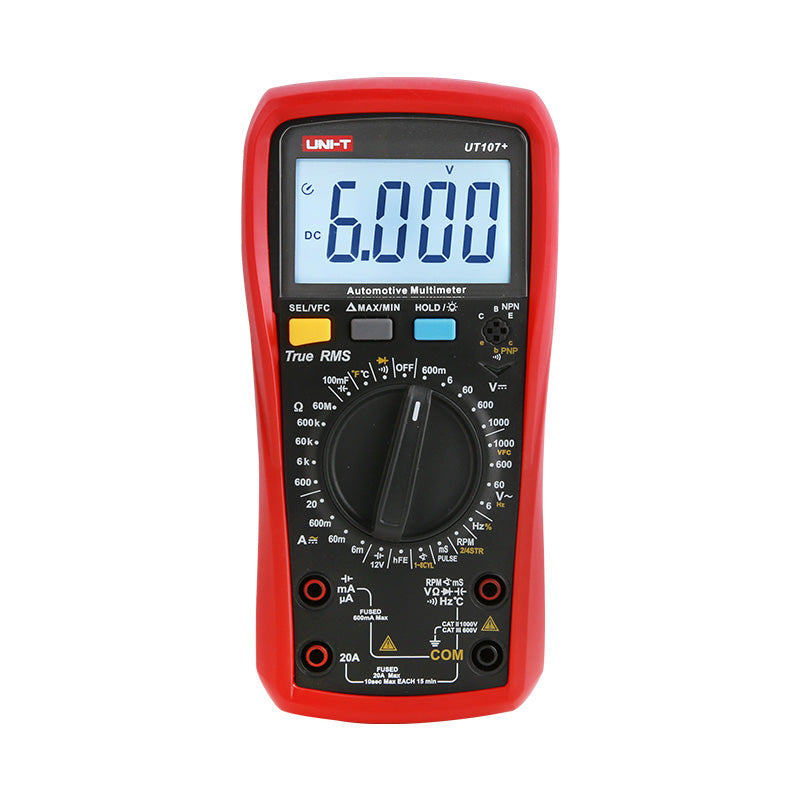

UNI-T UT107+ Automotive Multimeters
UNI-T UT107+ Automotive Multimeters
Couldn't load pickup availability
UT107+ Automotive Multimeters have updated measurement functions, accuracy, and meter shell to test conventional and hybrid vehicles. This series contains all the reliable functions of the traditional multimeter and offers RPM, dwell angle, pulse width, and battery test as well.
1000V AC/DC voltage and 10A AC/DC current (20A for 10s max) measurement range is suitable for most of the vehicle and electrical facilities maintenance. Up to 1000V VFC mode enables users to take accurate measurements on variable-frequency motor drives, water pumps, HVAC systems.
UT107+ are both True RMS automotive multimeters that meet CAT II 1000V/CAT III 600V safety rating. UT107+ supports some extra functions, such as battery test, pulse width, capacitance with 6000 counts display
Specifications of UT107+ Automotive Multimeters:
Specifications Range UT107+
DC voltage (V) 400mV/4V/40V/400V/1000V
600mV/6V/60V/600V/1000V ±(0.5%+3)
AC voltage (V) 4V/40V/400V/1000V
6V/60V/600V/1000V ±(0.8%+3)
AC current (A) 4mA/40mA/400mA/10A (20A for 10s max)
6mA/60mA/600mA/10A (20A for 10s max) ±(1.0%+8)
DC current (A) 4mA/40mA/400mA/10A (20A for 10s max)
6mA/60mA/600mA/10A (20A for 10s max) ±(0.8%+8)
Resistance (Ω) 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(0.8%+3)
Capacitance (F) 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF ±(3%+10)
Frequency (Hz) 10Hz~10MHz ±(0.1%+5)
Temperature (℃) -40℃~1000℃ ±(1.0%+3)
Temperature (℉) -40℉~1832℉ ±(1.5%+5)
VFC 1000V ±(2.0%+10)
RPM 2STR ±(3.0%+5)
4STR ±(3.0%+3)
Dwell angle 1CYL(0～356.4°)/2CYL(0～178.2°)/3CYL(0～118.8°)/4CYL(0～89.1°)/5CYL(0～71.3°)/6CYL(0～59.4°)/8CYL(0～44.5°) ±(3.0%+5)
Pulse width 999.9mS ±(1.5%+10)
Features
Display count 6000
Manual range √
Continuity/diode/transistor √
Duty cycle √
High voltage alarm √
High voltage overload alarm √
Large current alarm √
Low battery indication ＜ Approximately 2.4V √
Backlight √
Auto power off Approximately 15 minutes √
Data hold √
Max/Min/Relative mode √
VFC √
12V battery test √
Safety rating CAT II 1000V/CAT
